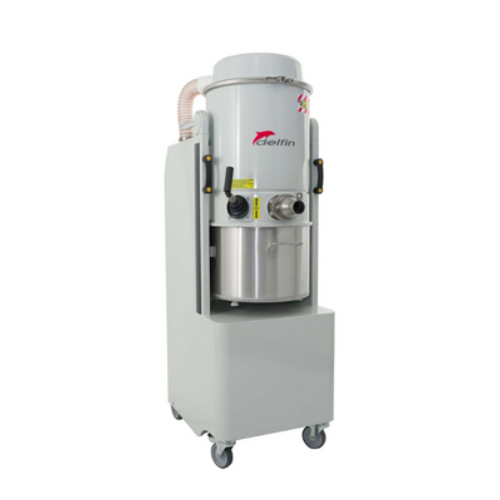

PHARMA 40
DRY APPLICATION - DIRECT EXTRACTION ON BOARD OF MACHINERIES
Features
- Applications: Compact, quiet, and flexible industrial vacuum cleaner for on-board suctioning
- Filter: Star filter with convenient integrated cleaning system, H14 safety filtration systems with BiBo
(optional) - Construction: Container in AISI304 stainless steel with butt welding, satin finish outside and polished
inside Clamp ø3” quick coupling connection in AISI304 stainless steel - Specialties: Different motorizations and possibility of customization for applications with fine and
dangerous dust.
Contact Us
Specifications
Specifications
| PARTICULARS | PHARMA 40.30 | PHARMA 40.40 |
| Voltage- V – Hz | 400 – 50 3~ | 400 – 50 3~ |
| Power- kW | 3 | 4 |
| Max waterlift-mmH2O | 3200 | 3200 |
| Continuous waterlift-mmH2O | 2700 | 2600 |
| Max airflow -m3/h | 318 | 420 |
| Suction inlet -mm | Clamp ø70 AISI304 | Clamp ø70 AISI304 |
| Capacity-lt. | 42 | 42 |
| Container | AISI304 Stainless steel: external satin finish | Internal: Polished | |
| Noise level -dB(A) | 69 | 69 |
| Dimensions -cm | 76x52x155h | 76x52x155h |
| Weight -kg | 120 | 120 |
| Primary filter | Star / Tasche | Star / Tasche |
| Surface, diameter-cm²-mm | 20.000 – 420 | 20.000 – 420 |
| Media, class (IEC 60335-2-69) | Antistatic Polyester M | Antistatic Polyester M |
| Air load on filter | 159 | 210 |
| Cleaning system | Manual | Manual |
