Exhaust Fan K300DL

  • 57″ exhaust fan application for poultry & livestock.
  • High efficiency and airflow but energy saving.
  • Strong housing frame structure and fan blades made in one peiece.
  • Permanent-magnet synchronous motor (IE4) and AC motors (IE3) are optional.
  • Sheet Molding Compound Fiberglass materials used.
Introduction

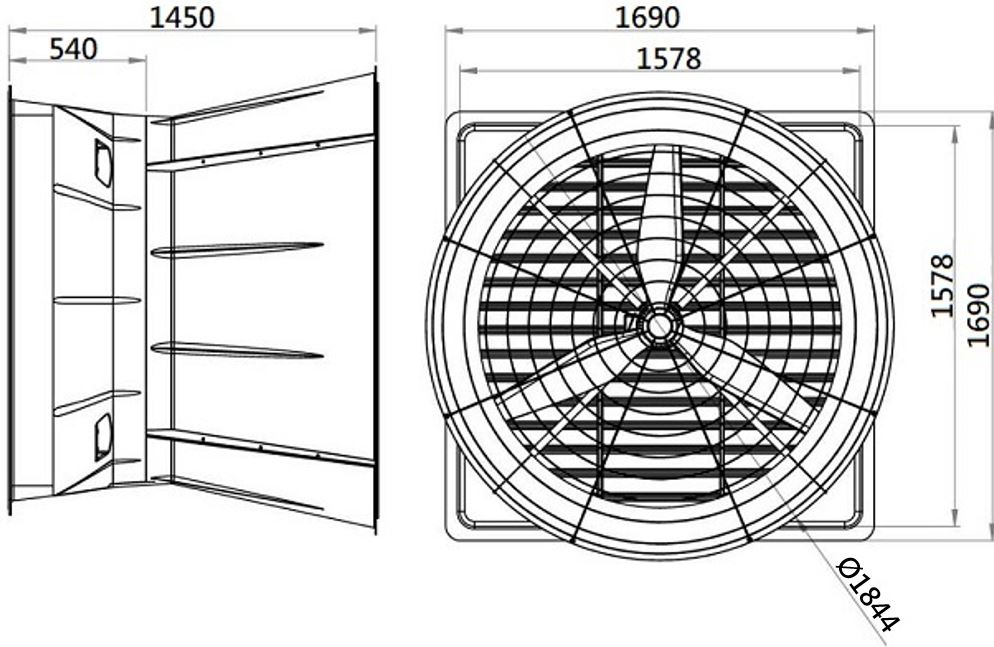

Fan Dimensions







Model57″ K300DL
External FrameSMC Fiberglass Housing
Fan Blades57″ 3 SMC Fiberglass Blades
Motor1.5HP DC PMSM Grade F IE4
Number of Poles16 Poles
Rotating Speed680 RPM
Sound Volume79 dB (Detected from 3m near.)
Voltage1∮220V, 60Hz (Optional)
Current6 A
Power Consumption1160 w/hr
Air Volume55800 CMH
SizeL169xW145xH169 cm
Weight114 kg
